Assembly Preparation and End Fitting Style

Assembly Preparation:

End Fitting Style:

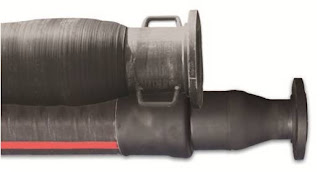

1. Built in Nipple:

Choose from a wide variety of built-in, internally expanded, and swaged fittings to make the perfect connection. Steel nipple is built into the hose during fabrication providing maximum holding power and a full flow unrestricted transition area. Available in threaded, flanged, or grooved end styles. Recommended for heavy duty, high pressure applications

2. Built-In Rubber Flange or Duck & Rubber Flange

Fabric plies and hose tube turn up the face of the flange. Steel back-up flange and rubber flange are molded together. Recommended for light to medium duty, low pressure, abrasive applications.

3. Split-Lok Flange

Two piece reusable coupling system is attached externally with compression bolts and allows the user to fabricate assemblies in the field.  Designed for large bore material transfer hose. Available in steel or aluminum.

4. Fixed or Floating Flange

Built-in, internally expanded, or externally swaged 150# and 300# drilling ANSI forged steel flanges.

5. Custom Ends

 Hose couplings designed specifically for you engineered needs.

6. Design Capabilities:

Virtually any feature of  a custom made hose can be modified  to meet
your specific requirements:

• Inside Diameter
• Outside Diameter
• Lenght
• Weight
• Color
• Tube Thickness
• Working Pressure
• Bends Radius
• End Fittings
